UI

The UI node renders a UI in the Flow Run.

It does not allow completion of the run until all the required elements inside the UI are filled.

Which UI is rendered

The UI field has two modes. The chain icon next to the field switches between them:

• Value: pick a UI in the dropdown. The node renders that UI in every run.

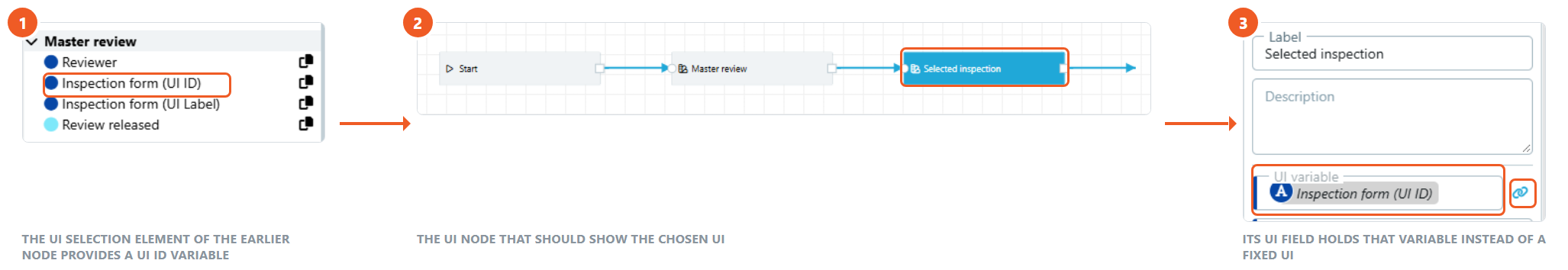

• Variable: pick a Flow Variable that holds a UI ID. The node resolves the variable while the run is executing and renders the UI that the value points to.

Variables holding a UI ID come from:

• the (UI ID) variable of a UI Selection element, so the user picks the UI during the run
• the UI Selection property of a Business Object that was read earlier in the Flow, so the UI is configured per object in the Business Model

The UI node is the place where a UI becomes variable. A UI Component embedded inside a UI keeps the UI that was chosen in the UI Designer, so a form that has to vary per object belongs in its own UI node.

Default values:

These values will be set before the user starts the UI. The values can be changed by the user.

You can set a static default value (Example text value) or use a Flow Variable (Start / User / First name).

Once a default value is applied to a UI it will not be set again.

Bindings:

The Binding are UI elements which are disabled (users cannot change their value).

You can use them to bind a Flow Variable to UI element.

The bound value in the UI will be updated every time the UI is visited.

Allow delegation

Enable this option if the current assignee of the UI task should be allowed to delegate the task to another user or group.

This is useful for tasks that may need to be handed over during processing without changing the Flow design.

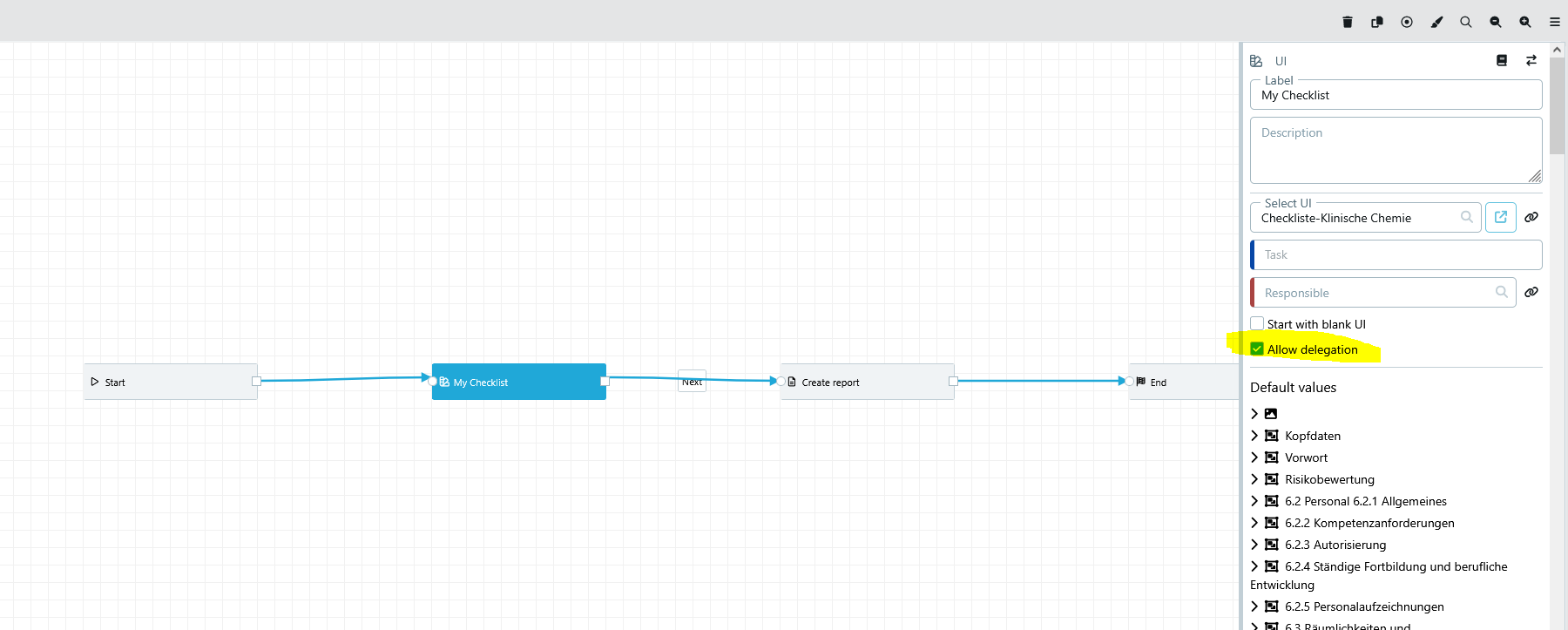

The following example shows where the option can be enabled in the UI node configuration.

Notes:

The UI node can only have exactly one response per Flow run. If you want to have multiple responses of the same UI within the same Flow, please add multiple UI nodes.

See Flow Designer, UI Designer
